Vehicle / Marine COFDM HD Video Transmitter 15km~20km NLOS Wireless Security System

Name: Vehicle Marine COFDM HD Video Transmitter 15km20km NLOS Wireless Security System
Brand: Ding Shen
Price: 1 USD

China Vehicle / Marine COFDM HD Video Transmitter 15km~20km NLOS Wireless Security System factory

Brand Name : Ding Shen

Model Number : DS-HDT25W

Place of Origin : china

MOQ : 1set

Price : Negotiaiton

Payment Terms : T/T, T/T

Supply Ability : 3,000pcs per month

Delivery Time : 3-7 working days

Certification : EC/FCC/ROHS

Frequency: : 300-900MHz,1.2G/2.4G/5.8GHz

Weight : 5.1KG

Contact Now

30W Rack-mount Tactical Ethernet military MIMO Radio

FDD is a new type of full duplx communication technology used in mobile communication systems,uses two separate channels for uplink and downlink transmission. model is a high power COFDM modulation Network IP radios with 30W rf power output.As its lightweight and small size that meets various vehicle /Vessel purpose required for robust long range video and data control over IP camcorder or Computer connection.


30W Rack-mount Tactical Ethernet military MIMO Radio design conforms to the military vehicle and is suitable for point-to-point long-distance mobile transmission.So the product is suitable for military, large unmanned aerial vehicles, UGV and other fields requiring long-distance network mobile communication.

Specification:

Frequency	300-900MHz,1.2G/2.4G/5.8GHz
RF power	15-25Watt(adjustable)
Power supply	DC11-14.5V/1.9A
Modulation	COFDM 2K QPSK
RF Bandwidth	4/8MHz(adjustable)
Delay time	Only 150ms
FEC	1/2 2/3 3/4 7/8
Guard Interval	1/32 1/16 1/8 1/4
Data Encryption	AES 128/256 Bits
Max speed	450km/h
Video Input	BNC: D1 standard definition
	HD: HD1080I/1080P, 720P, 576, 480
	SDI:HD1080I/1080P, 720P, 576, 480
Video compression format	H.264
Video Resolution	180p/1080i@60fps, 1920*1080 definition
RF Interface	N
Work environment	-40℃~70℃
Video Format	PAL/NTSC(self-adaption)
Transmission Distance	15km NLOS distance(ground to ground) 20km-35km LOS distance(on sea)
Case Material Aluminum	(black)
Size	22027578mm
Weight	5.1kg

Vehicle / Marine COFDM HD Video Transmitter 15km~20km NLOS Wireless Security System

Product Tags:

Marine COFDM HD Video Transmitter

COFDM HD Video Transmitter 15km

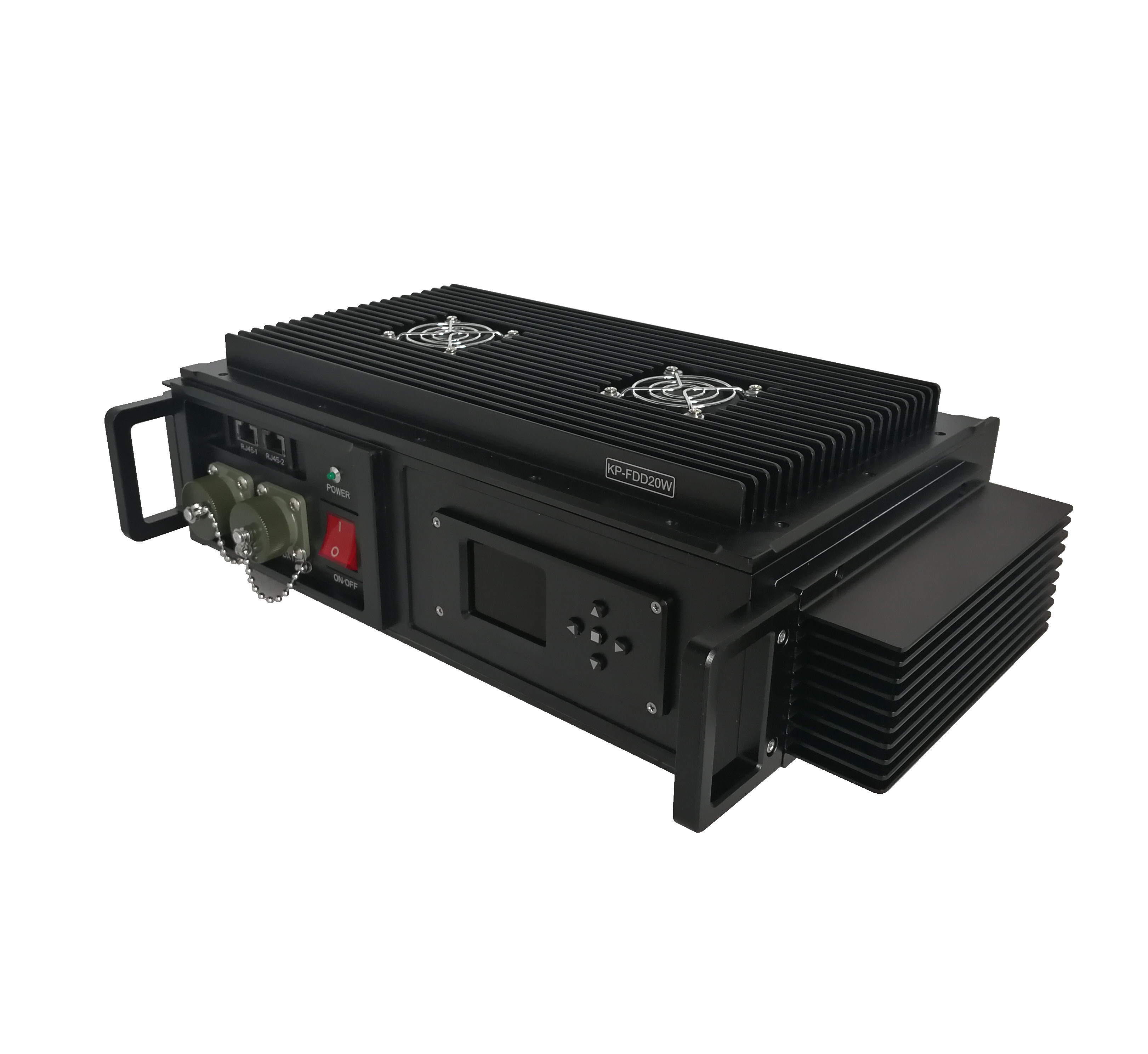

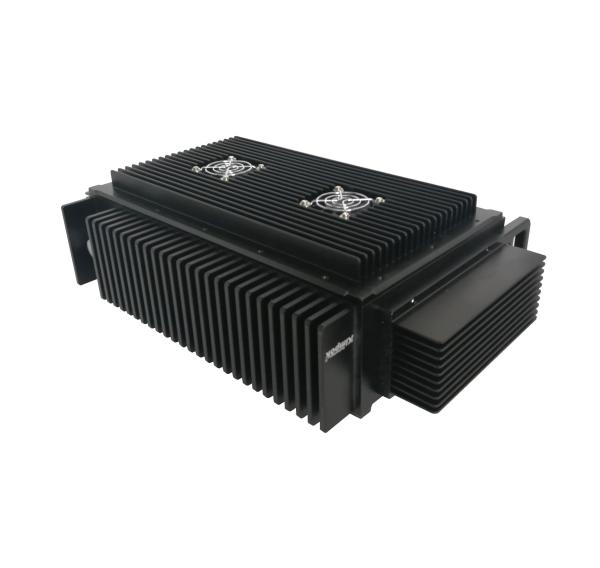

Vehicle / Marine COFDM HD Video Transmitter 15km~20km NLOS Wireless Security System Images
