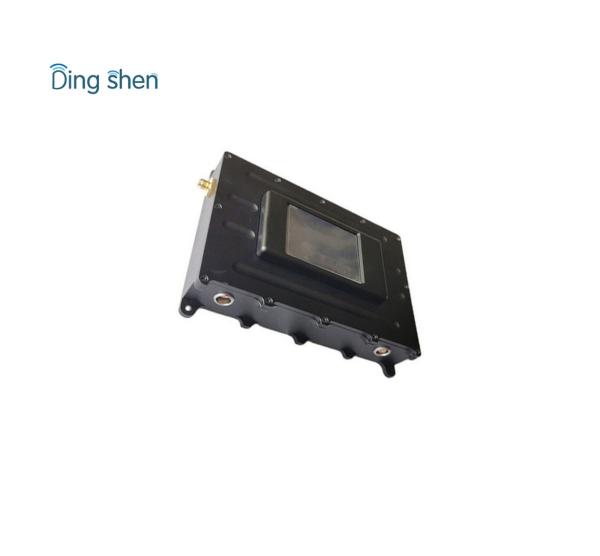

BodyWorn COFDM Video Transmitter 2 Watt Power For Emergency

  • 1
  • 2
  • 3

Brand Name : Ding Shen

Model Number : DS-HDT2W

Place of Origin : China

MOQ : 1Set

Price : Negotiaiton

Payment Terms : T/T

Supply Ability : 1,000pcs per month

Delivery Time : 3-7 days

Packaging Details : export standard packing

Certification : CE/FCC

Contact Now

BodyWorn COFDM Video Transmitter with 2 Watt Power for Emergency use

Lightweight COFDM Video Transmitter Features:

  1. Low delay,lightweight,live broadcast;
  2. Support Full- HD quality image;
  3. Support 1080i/1080P HD transission;
  4. COFDM modulation;
  5. Built-in with HDM or HD-SDI interface(single selection);
  6. Support composite standard video and balanced audio input;
  7. All parameters can be adjusted by user;

Wireless COFDM Transmitter Introduction:

DS-HDT2W 1080P HD transmitter is a powerful HD transmit system,using the core of mobile communication technology COFDM(multi-carrier modulation technique),which can transmit good quality and stable full-hd digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment.Support full HD 1080P H.264 encoding format and HD input as well support stereo balance audio input and narrowband transmission system.

Specification:

Voltage DC11V~DC16V
Current ≤1.1A/DC12.5V

Video Input

 AV: 3.5mm port, connect to standard resolution analog video signal
HDM-I/CVBS: support HD1080P,720P,576,480;
Frequency 300-4400MHz (optional)
Bandwidth 2/2.5/4/8MHz(adjustable)
Output power 2 watt
Data encryption AES 128bit (user-defined password)
Modulation COFDM
FEC 1/2, 2/3, 3/4, 7/8
Guard Interval 1/32, 1/16, 1/8, 1/4
Video Compression H.264
Standard Video Format PAL/NTSC (auto adaptation)
Parameter control method Set the related parameters through the control panel
RF Interface SMA
Working temperature -20℃~75℃
Transmission distance 1-40km max LOS (on air)
Dimension 132*90*26mm
Weight 420g
